Wiring Diagrams



If you cannot find the detail you need on these diagrams a list of additional diagram are listed below them and can be viewed on the International MG Y Type website.



























Click here to view these diagrams on the international Y type website under Technical Data

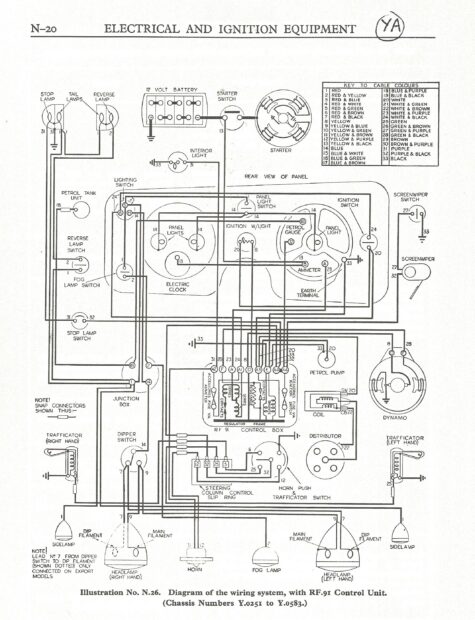

MG YA wiring diagram Y 0251 – Y 0583 Control Box Lucas RF.91

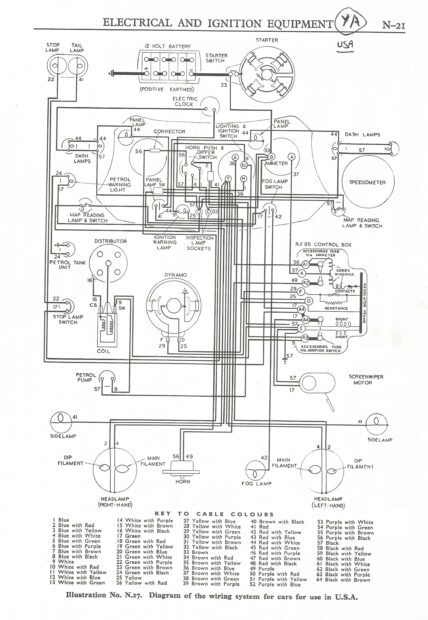

MG YA wiring diagram for cars for use in USA Control Box Lucas RF.95

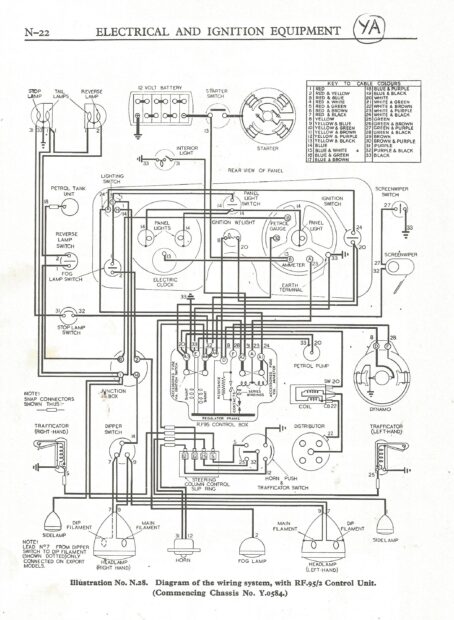

MG YA wiring diagram commencing Y 0584 Control Box Lucas RF.95

MG YT wiring diagram Home and Right Hand Drive Export

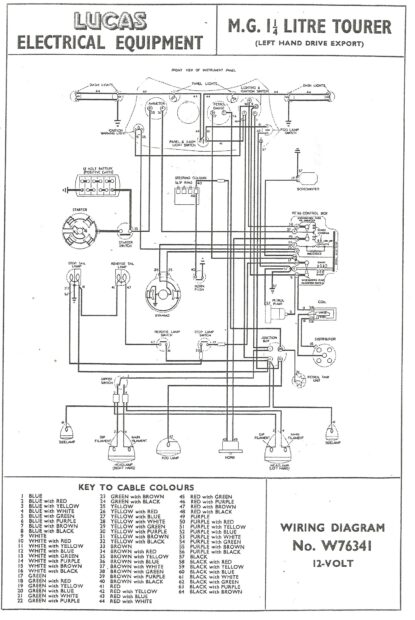

MG YT wiring diagram Left Hand Drive Export

MG YT EXU – additional details to standard LHD cars for EXU cars only – source T O’Brien

MG YT EXU 1949 standard LHD cars for EXU cars Control Box Lucas RF.91 only

MG YT EXU – 1951 – 1952 standard LHD cars for EXU cars Control Box Lucas RF.95 only

YT Lighting and Ignition Switch

MG YB wiring diagram YB 0251 – YB 0326 Control Box Lucas RF.95 – same as late YA!

MG YB wiring diagram commencing YB 0327 with single horn

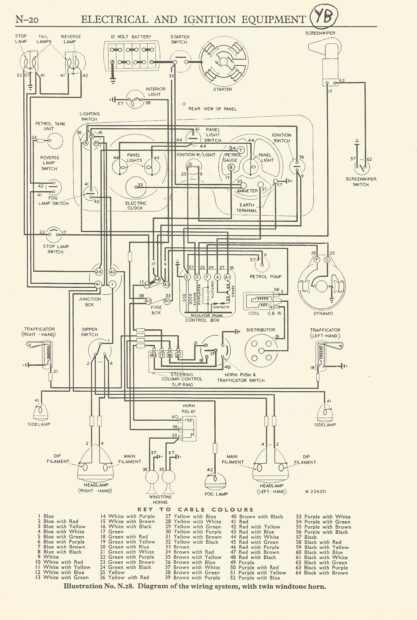

MG YB wiring diagram commencing YB 0327 with twin windtone horn
